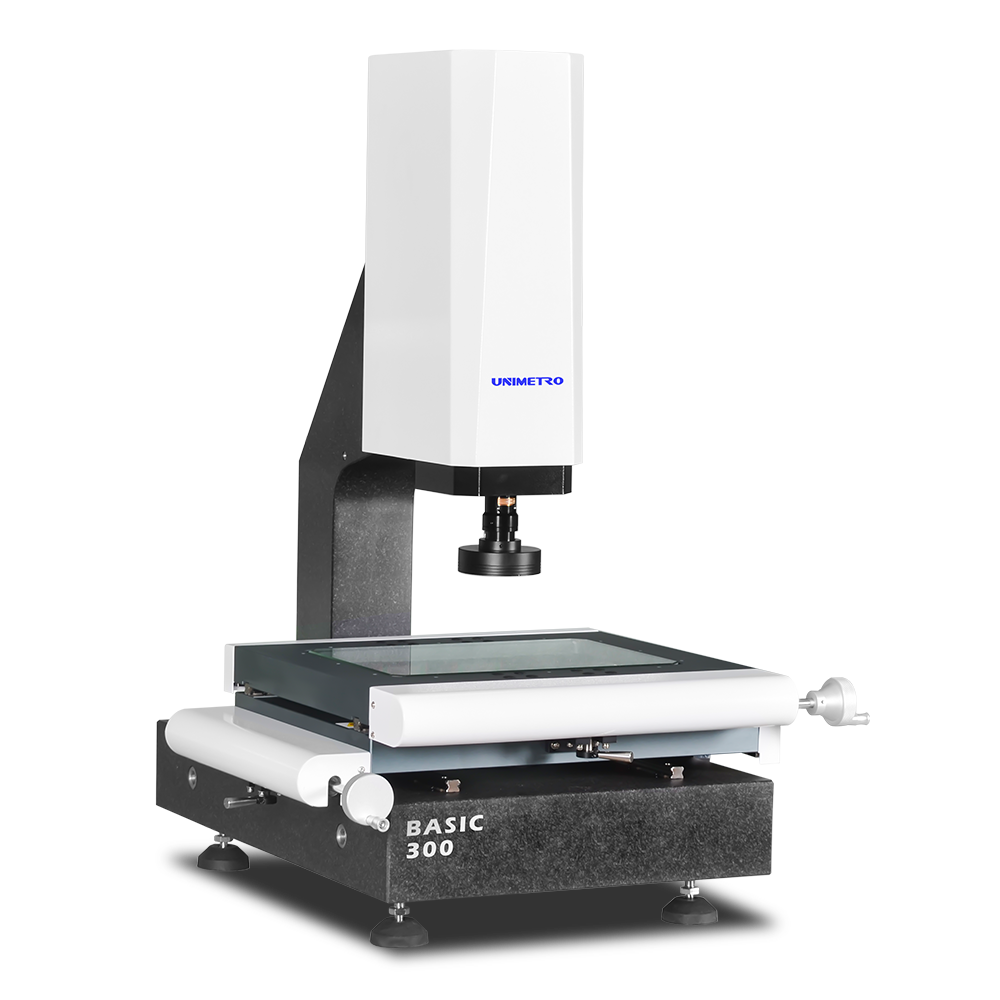

The BASIC series manual image measuring instrument is an important basic instrument used in the process of product quality control. It ensures the dimensional accuracy of your products and makes your products more competitive.
| Items | BASIC 300 | |
Dimension（mm） | 600 X 740 X 890 | |
Measuring range（mm）(X*Y*Z) | 300*200*200 | |
Weight（kg） | 190 | |

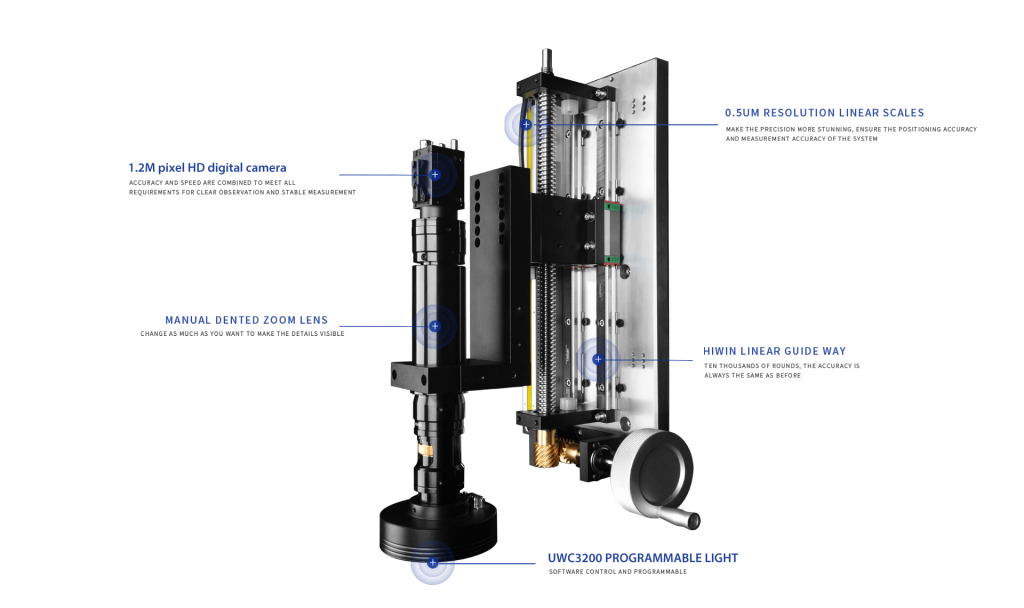

影像及测量 | CCD | 1.3M pixel HD GIGA digital camera |
Zoom lens | Manual zoom lens0.7-4.5X（Optional electronic magnification signal feedback lens） | |
Magnification | 18-195X（According to different models of optional cameras, the magnification will change accordingly; the actual magnification is subject to the measured data） | |
FOV | 8.1~1.3mm（FOV will change according to the different matching schemes of the camera and the lens. Actual FOV is subject to the measured data） | |
Work distance | 90mm | |
Linear scale resolution | 0.5μm | |
Drive system | X/Y/Z axis manual control | |
illumination system | Programmable LED 8 section ring surface light, parallel light at the bottom of the LED (optional: coaxial light) | |
