Portable 3D laser scanner for high-accuracy measurement.
When Accuracy Meets Versatility in a 3D Laser Scanner

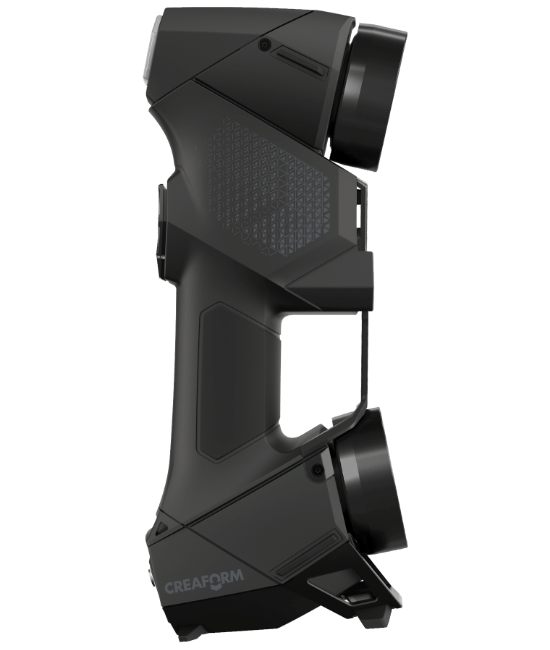

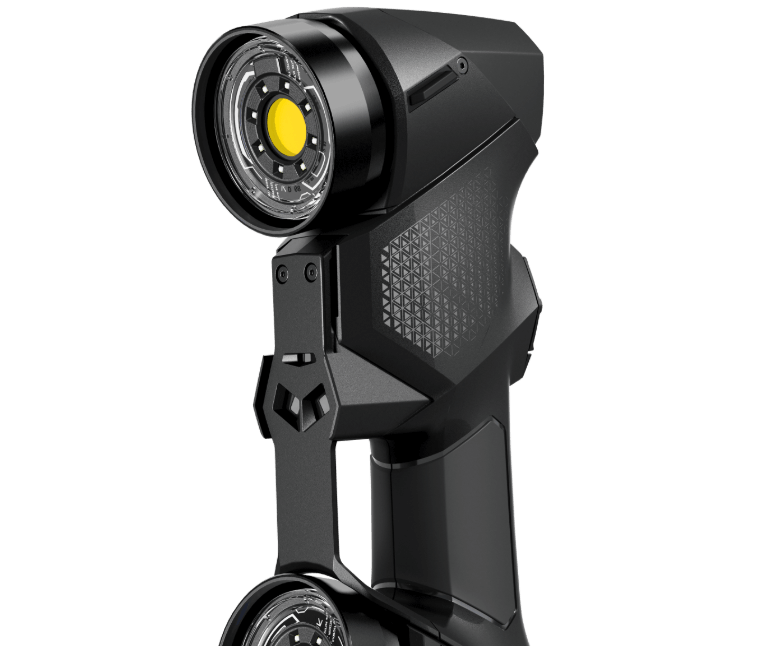

Optimized to meet the needs of design, manufacturing and metrology professionals, the HandySCAN 3D|BLACK Series is a metrology-grade handheld 3D laser scanner built for accurate and reliable 3D measurement across all part sizes, surface types, and materials. It delivers results within seconds, anywhere.
Certified based on the most rigorous industry standards, this fast and versatile handheld 3D scanner is easy to use and captures highly detailed measurements—even under challenging environmental conditions and on complex surfaces.
Certified based on the most rigorous industry standards, this fast and versatile handheld 3D scanner is easy to use and captures highly detailed measurements—even under challenging environmental conditions and on complex surfaces.
Looking for the ultimate portable metrology-grade 3D scanner for quality control or product development?
Our experts will find the perfect 3D measurement solution for your needs!
Discover how the BLACK Series is the ideal 3D laser scanner for your applications
Built for accuracy and portability, the HandySCAN 3D|BLACK Series delivers metrology-grade accuracy, high-resolution scanning, and fast 3D measurement performance.
Accurate, Reliable & High-Resolution 3D Measurements
The HandySCAN 3D|BLACK Series delivers accurate, high-resolution, and repeatable results, regardless of the measurement setup and user experience level. With its high volumetric accuracy, the BLACK Series accurately scans parts of all sizes, from small to large, making it ideal for various applications.
Accuracy
0.025 mm (0.0009 in)
Volumetric accuracy
0.020 + 0.040 mm/m (0.0008 in + 0.0005 in/ft)
0.020 mm + 0.015 mm/m (0.0008 in + 0.00018 in/ft) ) with Accu+ Kit
Reliable acceptance test
Based on VDI/VDE 2634 part 3 standard
Based on ISO 10360 standard
ISO/IEC 17025: 2017 accredited laboratory
High resolution for fine details
Integrated photogrammetry
High accuracy on large measurements with volumetric accuracy optimization
Portable 3D Laser Scanner

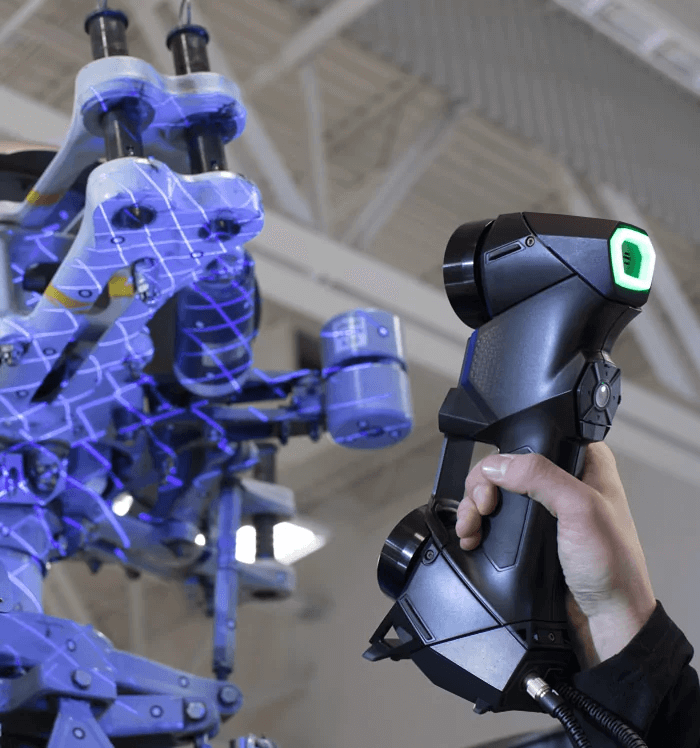

This handheld 3D scanner is a stand-alone device that does not require a tripod nor any external tracking device to operate. Fitting in a small suitcase, it can be brought anywhere and used in any environmental conditions without affecting its performance.
Lightweight
Self-positioning with dynamic referencing
Fits into a suitcase
Take it anywhere you need
Faster 3D Scanning Process

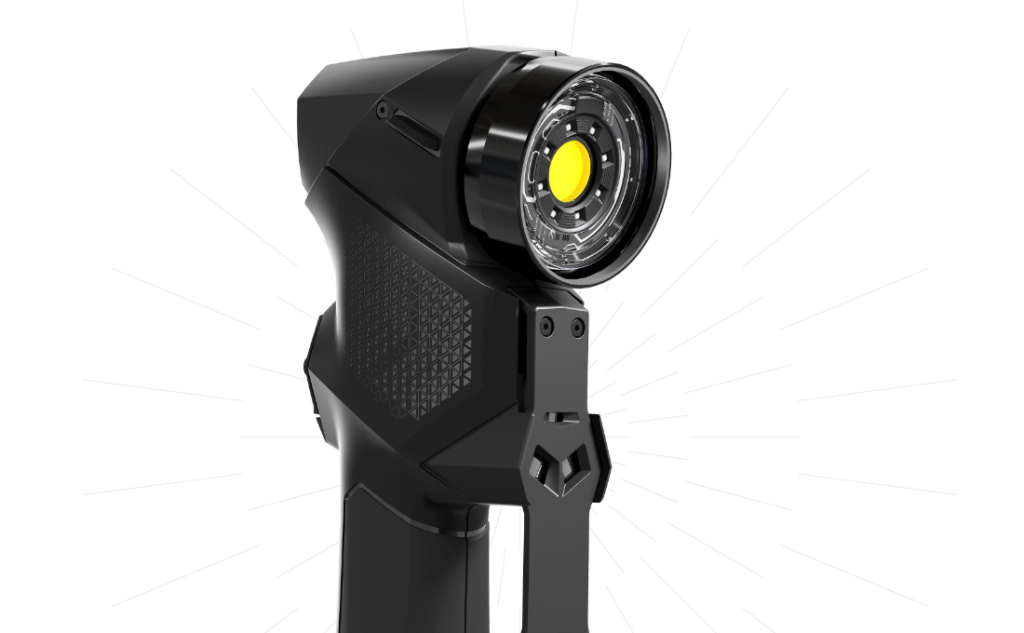

The HandySCAN 3D|BLACK Series supports automatic mesh generation, streamlining the workflow from setup to scan to mesh. Its Flex Volume feature also allows for rapid, high-quality measurements of large parts from a distance and precise scanning of smaller parts at a closer range.
Flexible working distance
200 to 750 mm (7.9 x 29.5 in) for faster acquisition
High measurement rate
Up to 1,800,000 measurements/s

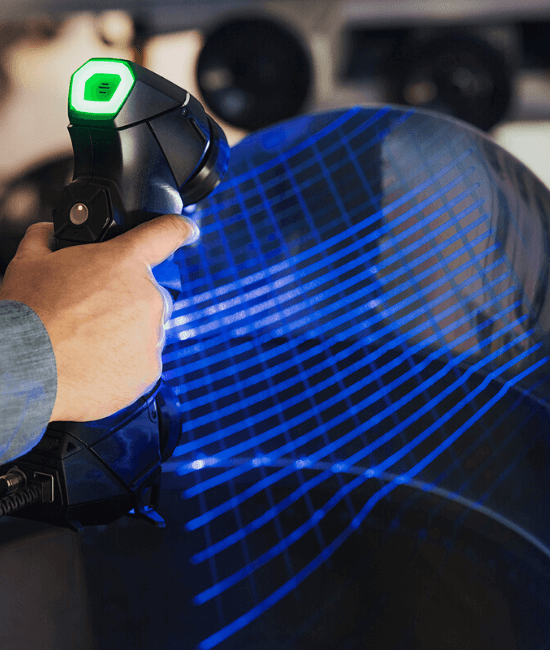

Large scanning area of 30 blue laser lines
Quick setup
Up-and-running in less than 2 minutes
Flexible working distance
200 to 750 mm (7.9 x 29.5 in) for faster acquisition
High measurement rate
Up to 1,800,000 measurements/s
Large scanning area of 30 blue laser lines
Quick setup
Up-and-running in less than 2 minutes
MetraSCAN-R BLACK Elite HD
Best 3D scanner for parts with many edges, trims, and boundaries
Based on the same high-performance technology as the MetraSCAN-R BLACK Elite, the MetraSCAN-R BLACK™ Elite HD features increased resolution to even better address the needs of the automotive market. Designed with an optimized field of view, the MetraSCAN-R BLACK Elite HD offers increased performance levels in terms of speed and repeatability for challenging applications,such as 3D measurements on sheet metal parts.
Light source
69 laser lines
Measurement rate
3,000,000 measurements/s
Scanning area
190 x 170 mm (7.5 x 6.7 in)
