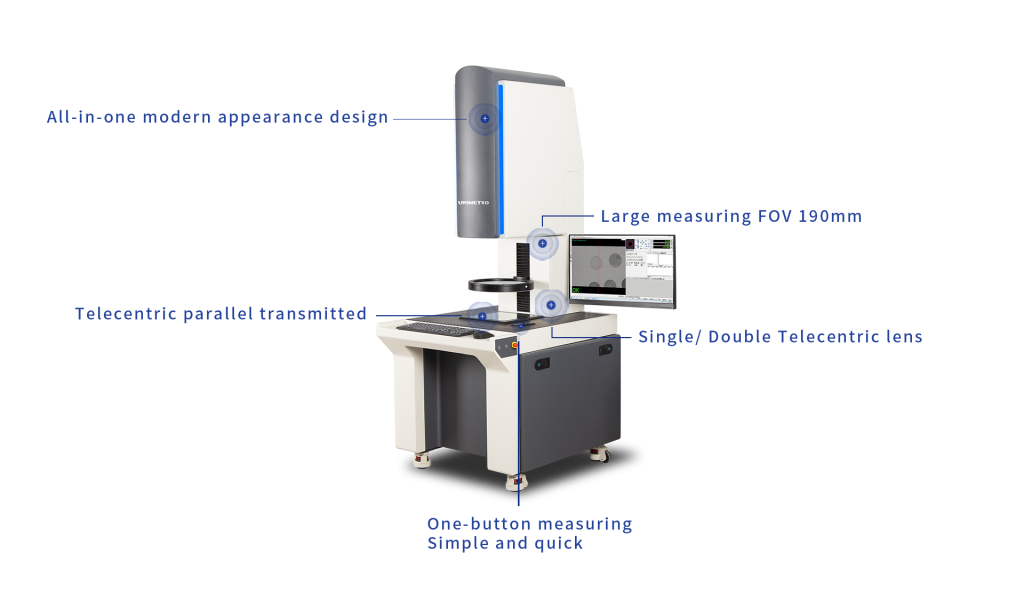

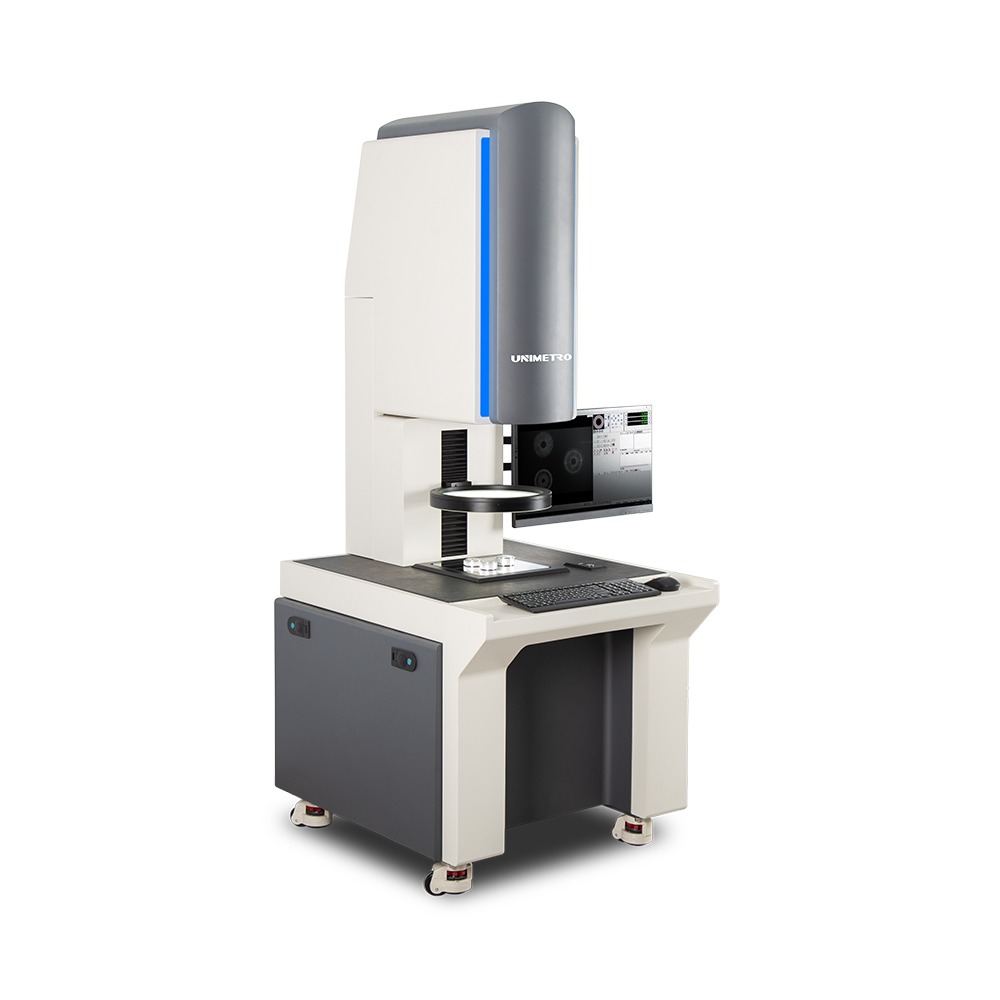

AVANT190 Image Dimension Measurement System is a new type of image measurement technology from UNIMETRO. It is different from the tranditional 2D vision measurement instrument, no longer needs a linear scale displacement sensor as a precision standard, and it does not need to enlarge the product image through a large focal length lens to ensure measurement accuracy.
| Item | AVANT 190 |
Image sensor | 20MP HD color digital camera |
Monitor | 24″ |
Light receiving lens | Single / double telecentric lens |
Illumination (Drop shot system) | Single zone ring directional lighting (white light) |
Illumination (Transmission system) | Telecentric transmission illumination (white light)） |
Broad（mm） | 195*130mm |
Repeatability（broad vision） | ±3um（Coordinate table not moving） |
Measuring Software | INS/F） |
Display resolution | 0.1um |
Z direction electric coordinate table | 100mm (moving range) |
Dimension | 812*964*2076mm |
Weight | 530KG |
Power supply | 110-240VAC，50/60HZ |
