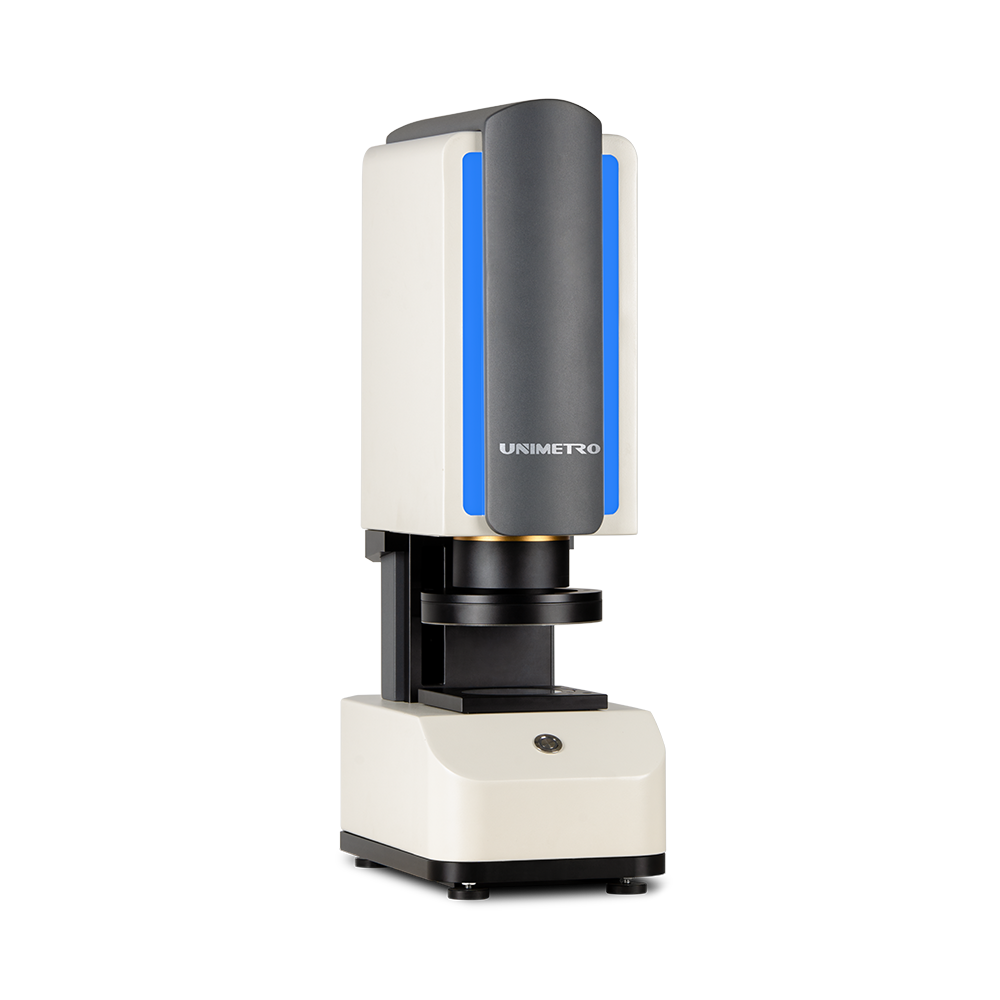

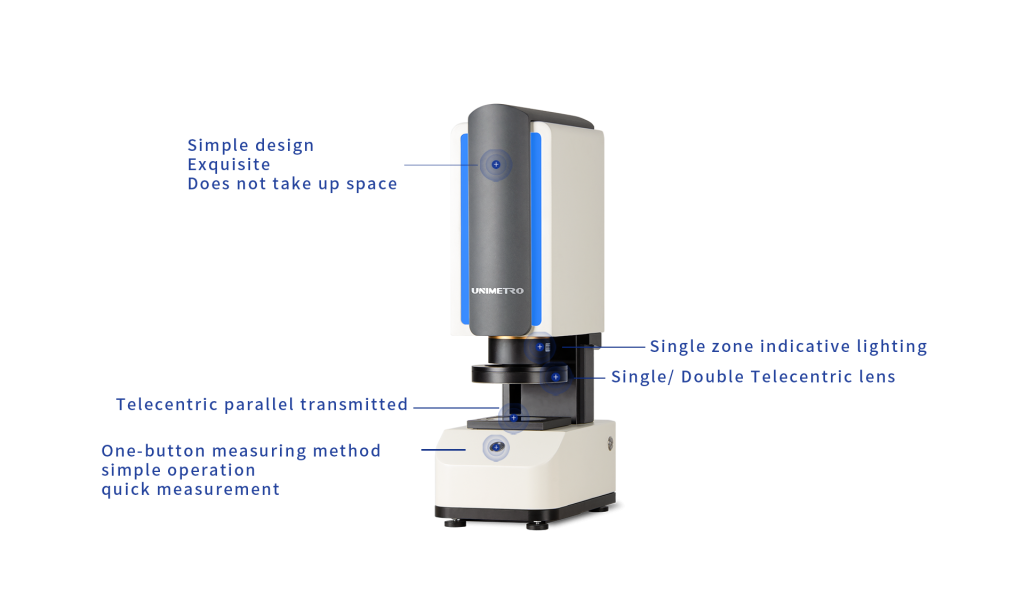

A100 Image Dimension Measurement System is a new image measurement technology of UNIMETRO, which is
different from the traditional 2D image measurement instrument. It no longer needs the grating ruler
displacement sensor as the accuracy standard, nor does it need to enlarge the product image through the lens
with large focal length to ensure the measurement accuracy. Its innovations in design and configiration make one-key quick testing a reality.
| Item | AVANT 100 |
Image sensor | 20MP HD color digital camera |
External display | 24″ |
Light receiving lens | Single / double telecentric lens |
Illumination (Drop shot system) | Single zone ring directional lighting (white light) |
Illumination (Transmission system) | Telecentric transmission illumination (white light) |
Broad Vision（mm） | 130*100mm |
Repeatability（broad vision） | ±3um（Coordinate table not moving） |
Measuring software | INS/F |
Display resolution | 0.1um |
Z-direction electric coodinate table | 100mm |
Dimension | 240*415*770mm |
Weight | 50KG |
Power supply | 110-240VAC，50/60HZ |
