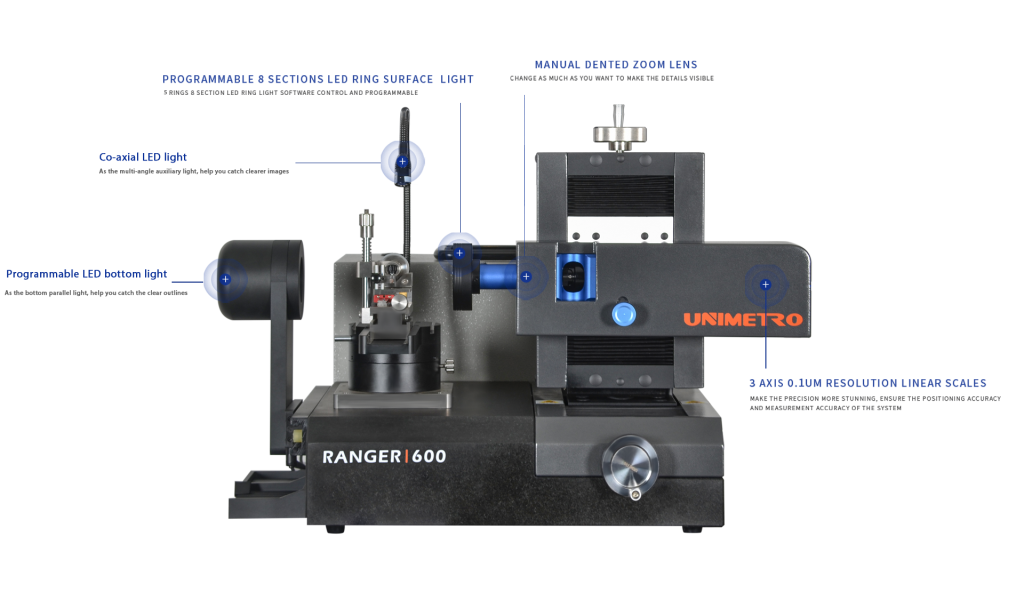

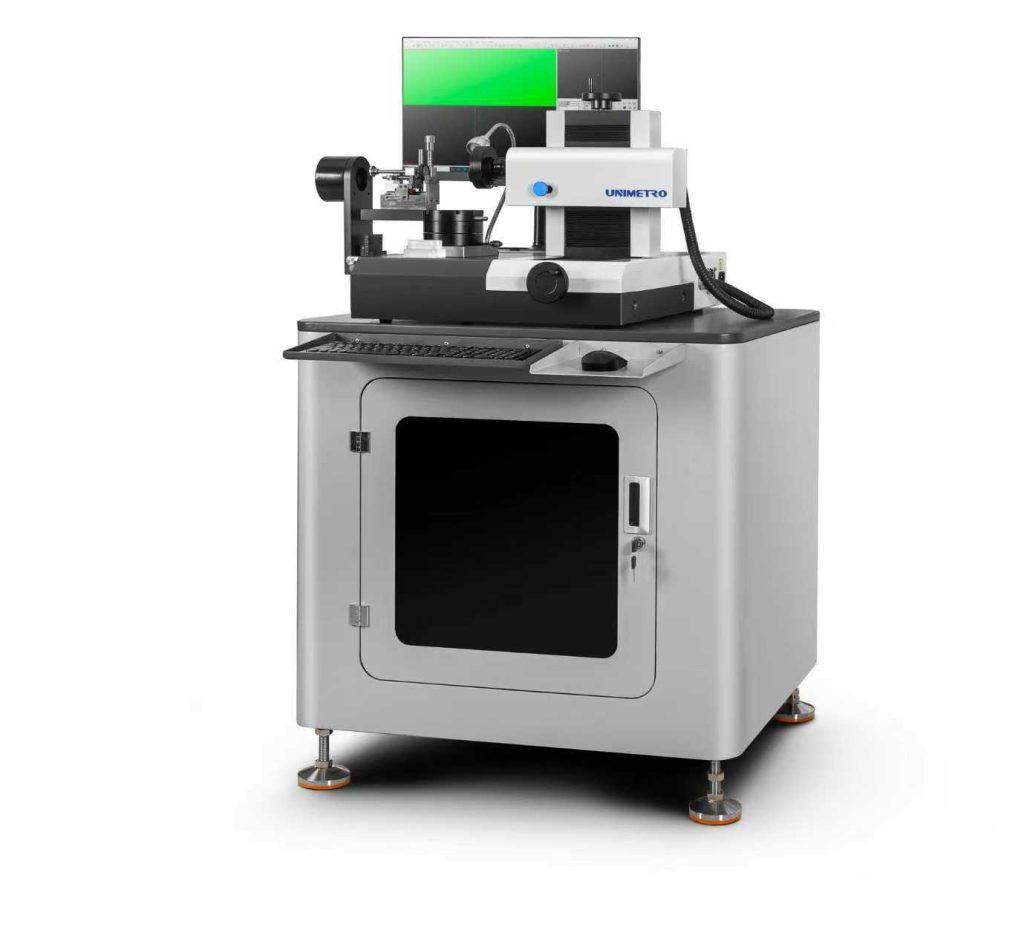

The UNIMETRO RANGER600 tool measuring system is a precision measuring system specially designed for measuring various milling cutters, drills and other tools. Its compact design and stable structure allow RANGER600 to be used directly in the production site or inspection room. Whether it is the judgment of individual elements, such as external contours or angles, or the global geometric measurement of complex tool curves, RANGER600 can provide complete and fast measurement functions.
| Items |
RANGER 600 |
|
X axis travel (mm) |
200 |
|
Y axis travel (mm) |
60 |
|
Focus range (mm) |
100 |
|
MAX Tool diameter（mm） |
20 |
|
MAX Tool length（mm） |
200 |
|
Working distance |
80mm |
|
Lens |
Manual zoom lens with signal feedback |
|
Camera |
4K pixel HD camera |
|
Resolution |
0.0001mm |
|
Magnification |
20X-200X |
|
FOV |
20.47mm*16.4mm – 1.53*1.23mm |
|
Measuring accuracy |
(2+L/100)um |
|
Computer System |
i5 Processor + Windows 10 + 24-inch monitor |
|
Illumination system |
LED ring surface light + LED bottom light + Mult-angle auxiliary light |
|
Input File Format |
DXF file |
|
Output File Format |
EXCEL, DXF |
