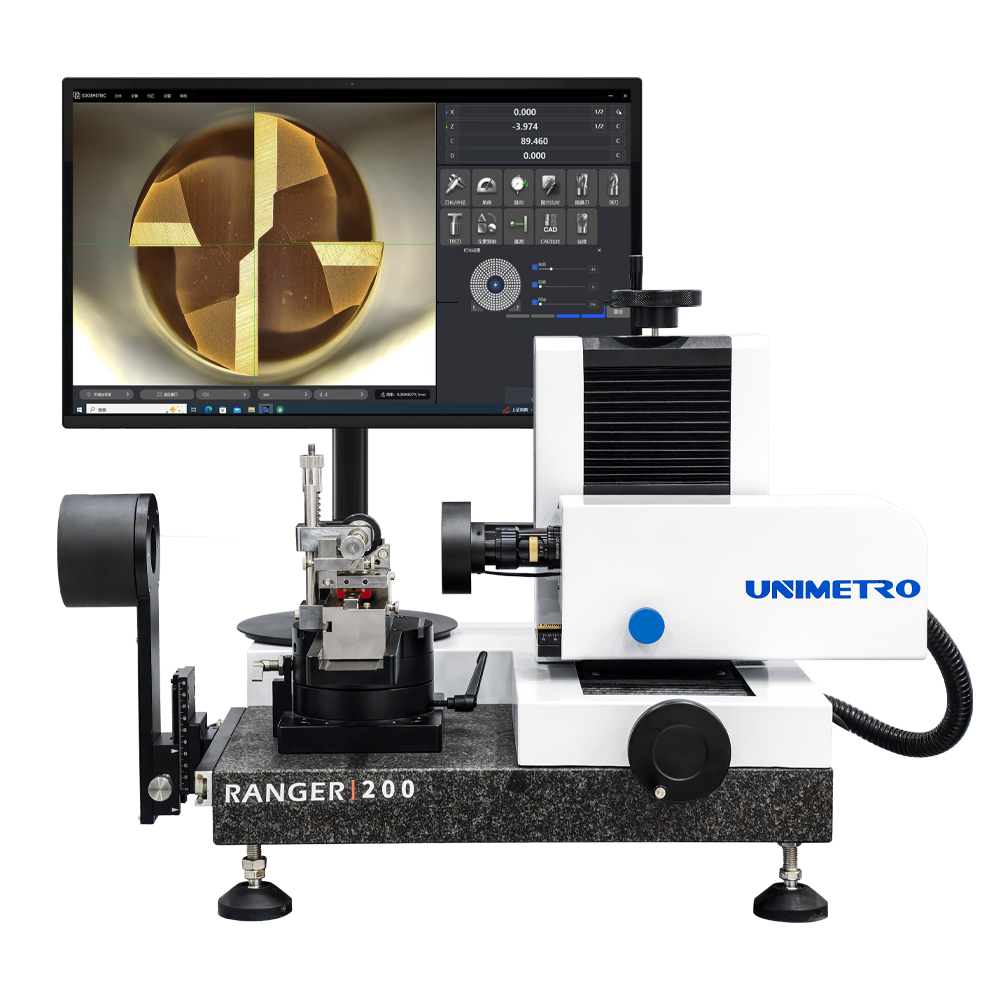

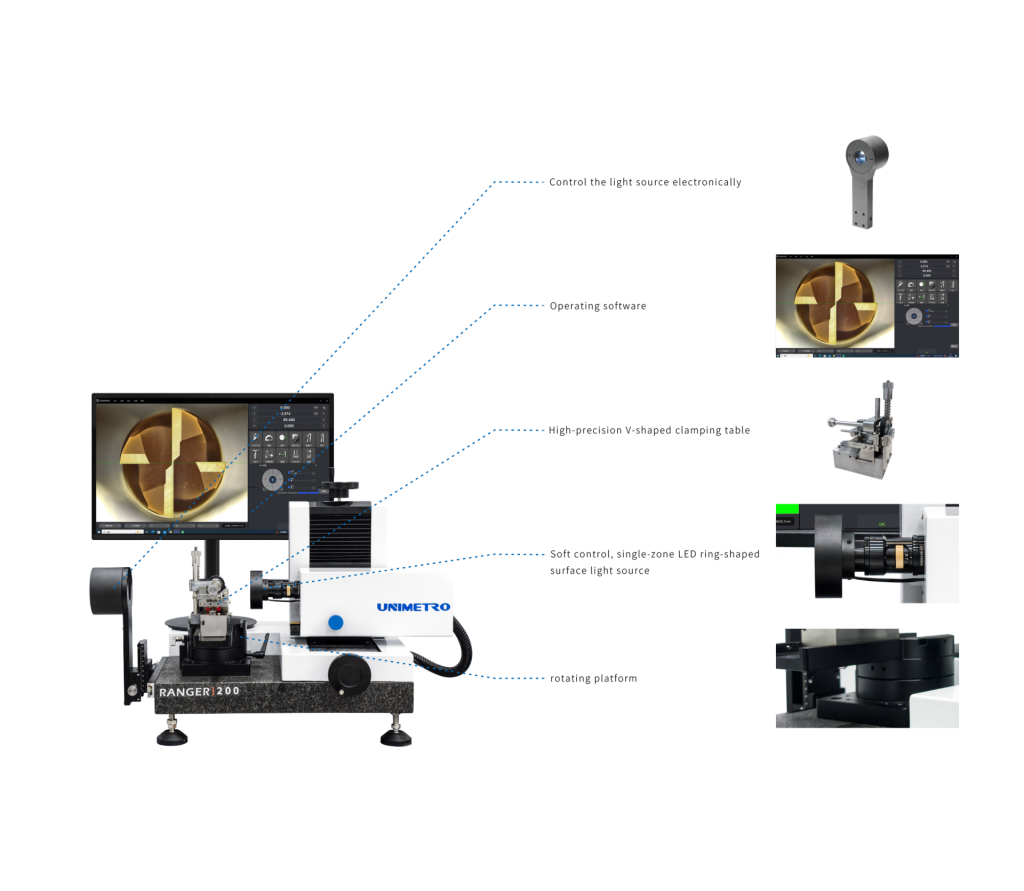

The UNIMETRO RANGER200 tool measuring system is a precision measuring system specially designed for measuring various milling cutters, drills and other tools. Its compact design and stable structure allow RANGER200 to be used directly in the production site or inspection room. Whether it is the judgment of individual elements, such as external contours or angles, or the global geometric measurement of complex tool curves, RANGER200 can provide complete and fast measurement functions.
Items | RANGER200 |
X axis Travel | 150mm |
Y axis Travel | 60mm |
Focus Range | 100mm |
MAX Tool Diameter | 20mm |
MAX Tool Length | 150mm |
Working Distance | 80mm |
Lens | Manual zoom lens |
Camera | 4K resolution high-definition camera |
Linear Scale Resolution | 0.0005mm |
Magnification | 20X-155X |
FOV | 12.4mm*9.3mm ~ 1.99*1.49mm |
Measurement Accuracy | X-Y(2.5+L/100) um,L is the measured length |
Computer System | PC: Intel Core i5, 8GB RAM, Windows 10 OS, 24-inch Monitor |
Illumination System | Programmable single-zone LED surface light and bottom light |
Input File Format | DXF |
Output File Format | EXCEL, DXF |
