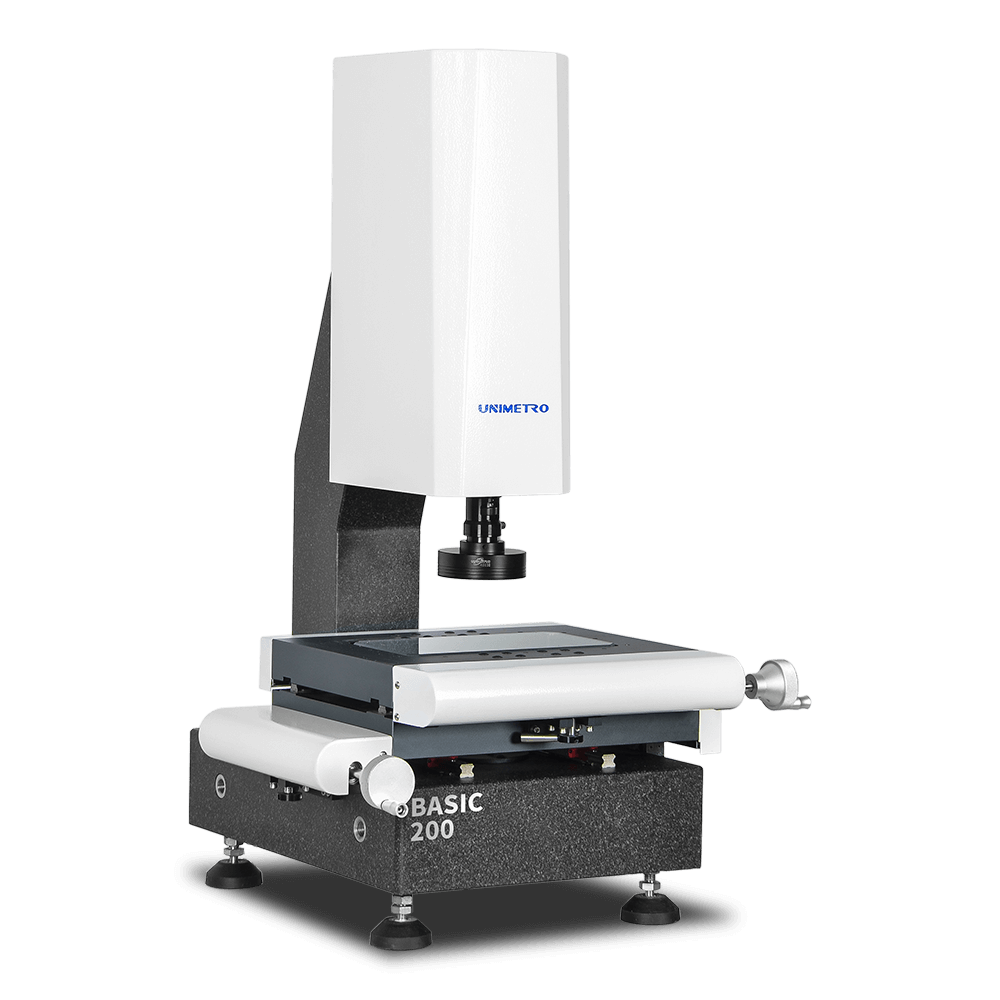

The BASIC series manual Vision Measurement Machine is an important basic instrument used in the process of product quality control. It ensures the dimensional accuracy of your products and makes your products more competitive.
| Items | BASIC 500 | |
Dimension（mm） | 800 X 940 X 890 | |
Measuring range（mm）(X*Y*Z) | 500*400*200 | |
Weight（kg） | 290 | |
Image and measurement | CCD camera | 1.3M pixel HD GIGA digital camera |
Zoom lens | Manual zoom lens0.7-4.5X（Optional: Electric signal feedback zoom lens and automatic zoom lens） | |
Magnification | 18-195X（According to the different model camera, the magnification will be changed, the actual magnification is subject to the measuring data) | |
FOV | 8.1~1.3mm（According to the different configuration between the camera and zoom lens, field of view will be changed, the actual FOV is subject to the measuring data) | |
Work distance | 90mm | |
Linear scale resolution | 0.5μm | |
Drive system | X/Y/Z axis control manually | |
illumination system | Programmable 8 section ring LED surface light, LED bottom parallet light (Optional: Coaxial light) | |
