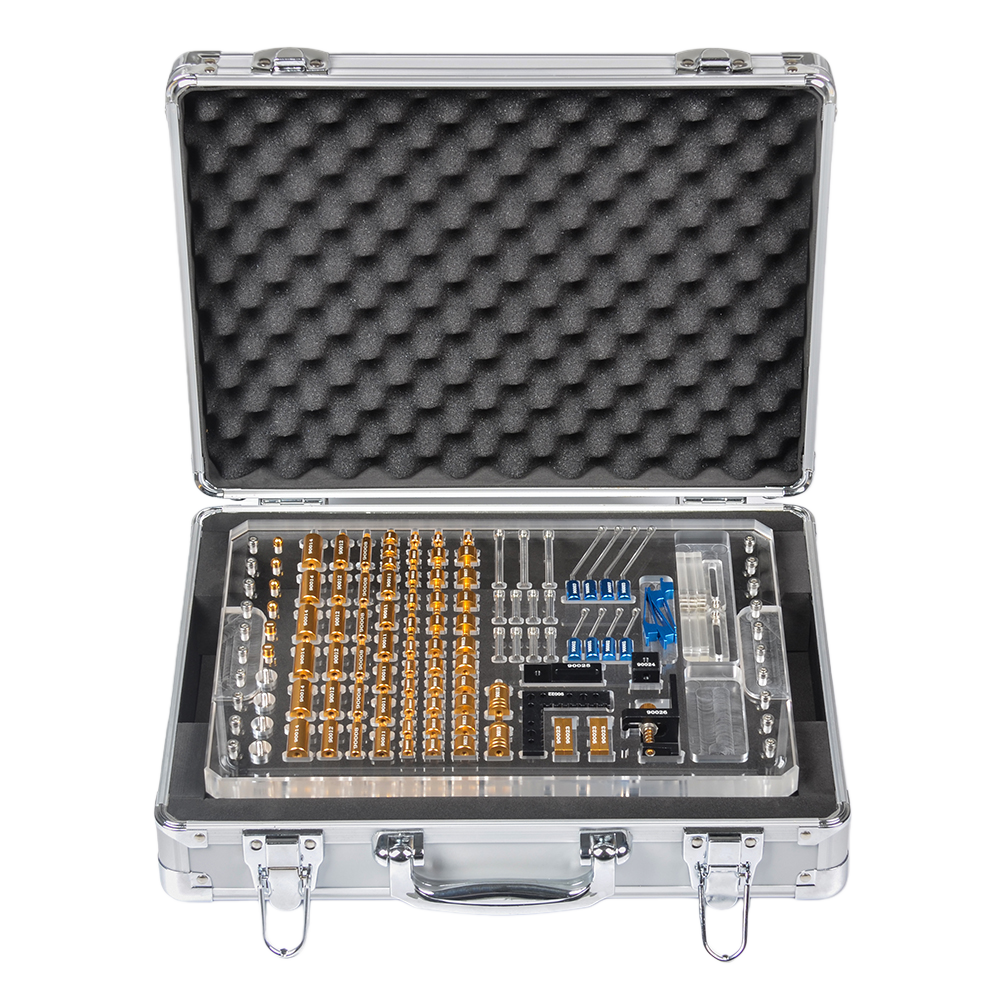

FlexFix series CMM fixtures system is designed and developed by UNIMETRO which means to help CMM users to improve the reproducibility band accuracy of the inspection process by providing quick and repeatable fixturing set-ups for the components. FlexFix series CMM fixtures are modular and can be expanded with user’ s requirements to provide a complete fixturing solution for any part regardless of its size shape or material
PARAMETERS
| Items | MARK NO. | QTY |
| 12*50mm Standoff | 80001 | 4 |
| 12*30mm Standoff | 80002 | 6 |
| 16*50mm Standoff | 80003 | 6 |
| 16*30mm Standoff | 80004 | 6 |
| 20*50mm Standoff | 80005 | 6 |
| 20*30mm Standoff | 80006 | 6 |
| 12*20mm Standoff | 80007 | 6 |
| 16*20mm Standoff | 80008 | 6 |
| 20*20mm Standoff | 80009 | 6 |
| Pusher clamp | 800010 | 2 |
| Screw pusher clamp | 800011 | 2 |
| Adjustable pivot joint | 800012 | 2 |
| Adjustable jack stand | 800013 | 2 |
| Magnet | 90014 | 4 |
| Pin Standoff | 800015 | 2 |
| Adptor | 800016 | 6 |
| Base board screw | 800017 | 2 |
| V post | 800018 | 2 |
| Screws | 800019 | 4 |
| Adjustable slide | 800020 | 8 |
| Tension clamp | 800021 | 4 |
| Hold down clamp | 800024 | 2 |
| Short tension clamp support | 800022 | 2 |
| Long tension clamp support | 800023 | 2 |
| Cone | 800025 | 3 |
| Nylon cone | 800026 | 3 |
| Screw driver | 800027 | 2 |
